Batam is not just an island; it is the pulse of the manufacturing and maritime industries in the Strait of Malacca. Amidst the hustle and bustle of the Muka Kuning Industrial Estate to the massive shipyards in Tanjung Uncang, the need for water with precise specifications becomes absolute. As a Batam RO machine supplier focusing on advanced Water Treatment Plant (WTP) engineering, PT Mizui Osmosa Teknovisa understands that water for industry is not just ordinary H2O. For a Procurement Manager in a semiconductor factory, water is a crucial component that determines the production yield of microchips. For a Site Manager at a shipyard, the availability of fresh water from the desalination process is the lifeblood of ship and crew operations. We are here to bridge these technical complexities with filtration system solutions that are reliable, efficient, and meet ISO standards.
Batam’s status as a Free Trade Zone (FTZ) attracts global investment that brings with it international quality standards. However, geographically, Batam has unique hydrological challenges with a high dependence on rain-fed reservoirs. The fluctuating raw water quality—sometimes having high turbidity or dissolved organic content—demands an adaptive and robust water treatment system. It is not enough to rely on Selling Batam Reverse Osmosis machines with standard household specifications; the industries here require custom-engineered systems.
In the context of the electronics and pharmaceutical industries, parameters such as Total Dissolved Solids (TDS), Conductivity, and Total Organic Carbon (TOC) must be monitored down to the parts per billion (ppb) level. Failure to achieve these parameters can be fatal, ranging from corrosion in high-pressure boiler steam engines to short circuits on silicon wafers. Therefore, our position as a Batam water treatment equipment distributor is not just as a merchant, but as a technical partner who designs the process from upstream to downstream. We integrate appropriate pretreatment technologies to maintain the longevity of RO membranes, ensuring your company’s investment is protected from premature damage due to fouling or scaling.

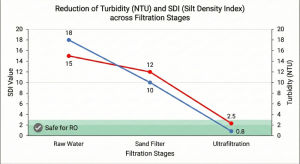

The electronics industry in Muka Kuning and Batam Center operates with near-zero error tolerance. The water used for rinsing PCB or semiconductor components must meet the Ultrapure Water (UPW) standard. This is where the crucial role of hollow fiber membrane technology comes in. Before the water enters the main Reverse Osmosis unit, the use of an Ultrafiltration water filter for the electronics industry is the gold standard in modern process design. Ultrafiltration (UF) acts as a physical barricade that filters particles down to 0.01 microns, drastically reducing the feed water’s Silt Density Index (SDI).
Why is this reduction in SDI vital? RO membranes are highly sensitive to colloidal particles that escape from conventional sand filters. By applying a UF system as a pretreatment, we ensure that the water entering the RO booster pump is free of suspended solids, bacteria, and some viruses. This significantly extends the lifespan of the RO membrane and reduces the frequency of Chemical Cleaning. Furthermore, the combination of UF and RO is often followed by an Electro-Deionization (EDI) or Mixed Bed Polishing system to achieve water resistivity approaching 18.2 Mega-ohms, complying with the ASTM D1193 standard for Reagent Water. As a Riau Islands industrial RO system vendor, PT Mizui Osmosa Teknovisa designs these systems with redundancy and PLC automation, ensuring an uninterrupted supply of pure water even when one module is in the backwash phase.
Shifting to the maritime sector in Tanjung Uncang and Batu Ampar, the challenge shifts from molecular purity to the ability to handle extreme salinity. Seawater with an average TDS of 35,000 ppm is an enemy to metals, but it is an unlimited resource if treated properly. The shipyard and offshore platform industries require desalination systems that are resilient against corrosion and capable of operating non-stop.

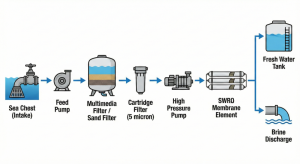

Building a Sea Water Reverse Osmosis (SWRO) system for a marine environment requires significantly higher material specifications compared to freshwater systems. In providing clean water installation for shipyards, PT Mizui Osmosa Teknovisa utilizes High Pressure Pump components made of Duplex or Super Duplex Stainless Steel. This material is mandatory to withstand operating pressures that can reach 60 to 70 bars, as well as to combat pitting corrosion caused by chloride ions in seawater. Our systems are designed as skid-mounted (integrated into a single frame) or containerized to facilitate mobilization in dry dock areas or onboard installations.
This desalination process converts seawater into fresh water that is potable and safe for the ship’s technical needs, such as engine cooling or crew sanitation requirements. We also pay attention to energy efficiency by integrating Energy Recovery Devices (ERD) in large-capacity systems, which are capable of recycling pressure from brine (salt waste) to assist the main pump, thereby significantly reducing electrical operating costs. As a Batam seawater desalination unit provider, we guarantee that the fresh water output meets WHO standards for drinking water, providing peace of mind for shipyard management and ship owners.
A WTP system is only as strong as its weakest component. System reliability is not only determined by the initial design but also by the quality of consumables and spare parts used during its operational life. Often, Procurement Managers are trapped into purchasing cheap units but struggle to find compatible spare parts later on.

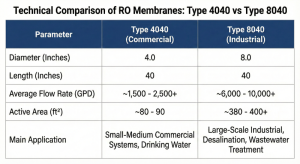

The membrane is the heart of a Reverse Osmosis system. The two most common standard sizes used in the industry are the 4040 type (4-inch diameter) for medium capacity and the 8040 type (8-inch diameter) for large industrial capacity. Regarding Batam 4040 and 8040 RO membrane prices, price variations are heavily determined by the brand (such as Dow Filmtec, Hydranautics, or Toray), the active membrane area, and its rejection rate specifications. Brackish Water (BW) membranes naturally have a different price structure than Sea Water (SW) or Low Fouling (LFC) membranes.
For example, an 8040 membrane with a Low Energy feature might have a slightly higher initial price, but it can save millions of rupiah per year in pump electricity costs because it operates at a lower pressure. PT Mizui Osmosa Teknovisa provides full transparency regarding these specifications. We do not just sell goods; we provide consultations to select the type of membrane that best suits your raw water characteristics, ensuring you do not “buy a pig in a poke” or overpay for unnecessary specifications. We have ready-to-ship stock to ensure your production downtime is kept to an absolute minimum.
Besides the membrane, the RO machine ecosystem is supported by various vital supporting components. The availability of RO machine spare parts (housing, pump, cartridge) in our local Batam warehouse is our logistical advantage.
Membrane Housing: We provide Vessel Housings made of Fiber Reinforced Plastic (FRP) that withstand high pressures up to 1000 PSI, as well as Stainless Steel variants for sanitary applications. Housing quality heavily determines occupational safety, considering the high pressure stored within.
Pump: Multistage Centrifugal Pumps from leading brands like Grundfos, CNP, or Lowara are our standard. We also provide alignment services and mechanical seal repairs for these pumps.
Cartridge Filter: Often underestimated, 10 to 40-inch sediment filters (spun/wound) are the membrane’s first line of defense. Using cheap cartridges that break down easily (fiber migration) can actually clog RO membranes, which are far more expensive.
As a technically oriented Batam industrial water filter shop, we ensure every spare part we supply has a Certificate of Analysis (CoA) or a clear technical datasheet, making it easier for your engineering team to conduct audits or routine maintenance.
An investment in an RO machine worth hundreds of millions to billions of rupiah will be in vain without proper maintenance. Water is a universal solvent, and over time, it will leave traces in the form of mineral crusts (scaling) or bacterial layers (biofouling) on the membrane surface. This is why our relationship with clients does not end upon signing the Delivery Order.
Many companies experience a decline in water production capacity just 6 months post-installation due to operational errors. Through Batam RO machine services, PT Mizui Osmosa Teknovisa’s technician team is ready to perform in-depth diagnostics. Our services include Chemical Cleaning (CIP) using precise acidic and alkaline formulas to strip away scale without damaging the membrane’s polymer structure. We also conduct membrane autopsy analysis if necessary to determine the exact cause of a system failure.
In addition to curative repairs, we place a strong emphasis on Preventive Maintenance. This includes adjusting antiscalant dosages, checking instruments (flowmeters, pressure gauges), and calibrating conductivity sensors. Our goal is to restore your machine’s performance to its initial design efficiency point (design recovery). The transition from simply “fixing it when it breaks” to “maintaining it so it doesn’t break” is the mindset we instill in every client in the Riau Islands industrial areas.
In a competitive industrial landscape, clean water is a utility that must not be disrupted. PT Mizui Osmosa Teknovisa combines civil and chemical engineering expertise to deliver integrated water treatment solutions. We understand the environmental regulations set by BP Batam and global quality standards.
Whether you need an ultra-pure system for wafer fabrication or a robust desalination unit for a tugboat, our approach remains the same: accurate raw water data analysis, precise engineering design, and responsive after-sales support. Do not let water quality issues hinder your company’s productivity.
Contact our engineering team today for technical consultation and the best offers. Ensure you partner with experts who understand the ins and outs of industrial water in Batam.
